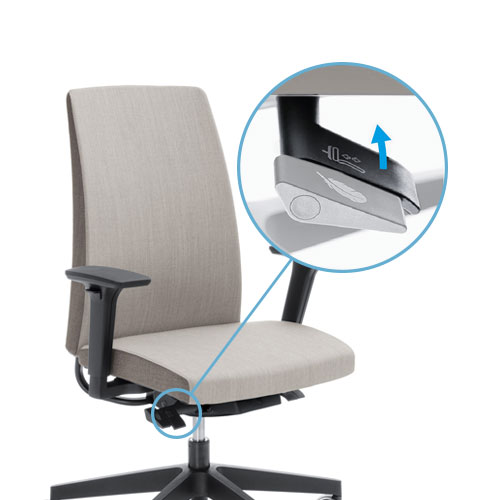

Lowering the seat:
1. Sit down on the seat.
2. Pull the lever upwards (seat will drop slowly).
3. Release the lever at the desired and lock the position.
Raising the seat:
1. Stand up.
2. Pull the lever upwards (seat will raise slowly)
3. Release the lever at the desired and lock the position.

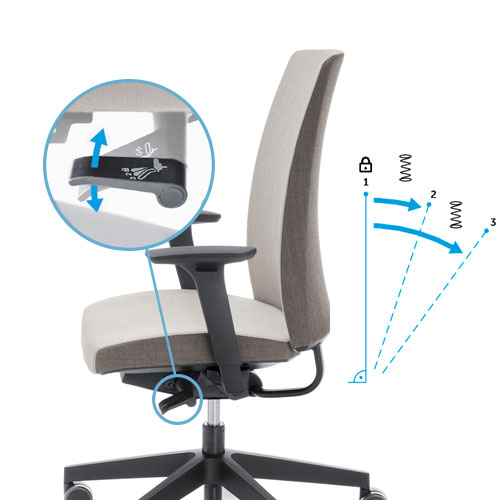

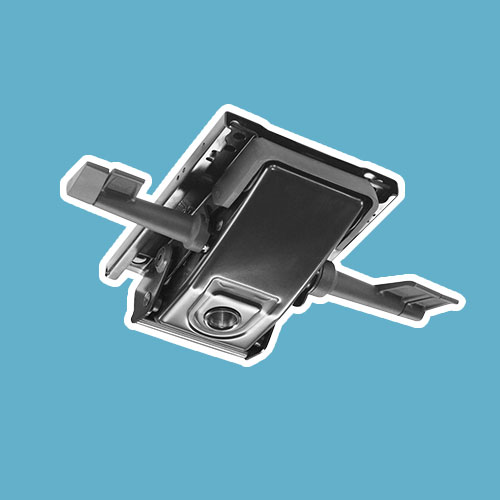

The self-weighing Automatic Synchro mechanism
allows the back to be locked in the upright position (lever max. upwards).
1.
Lever in mid-position - smaller angle inclination angle of the backrest and the seat.
2.
Lever max. downwards - bigger angle inclination of the backrest and the seat.

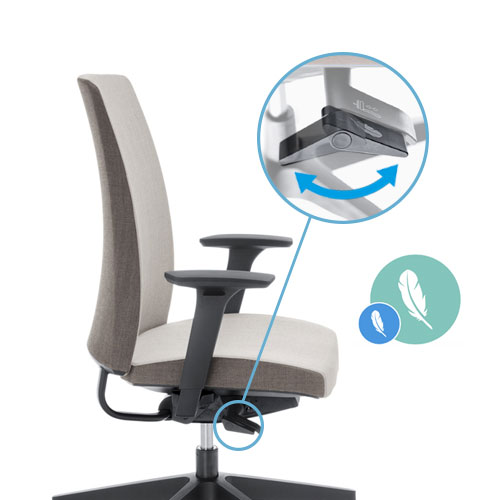

The self-weighing Automatic Synchro mechanism senses
your weight and adapts to your body. Additionally,
you can easily toggle between two types of comfort:
- lever turned forwards - "relaxed" mode
- lever turned backwards - "supportive" mode

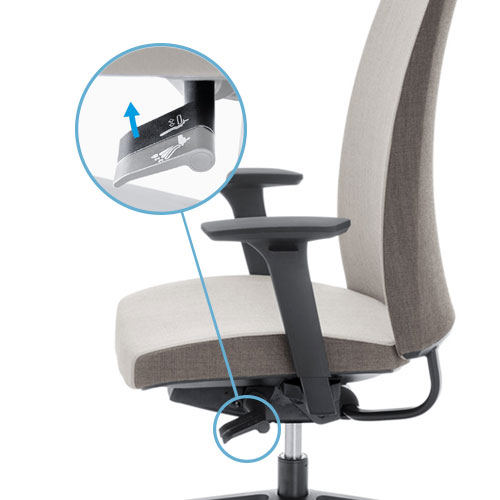

1. Pull the lever upwards.
2. Holding the lever upwards adjust
the seat to the desired position.
3. Release the lever and mechanism
will lock in.

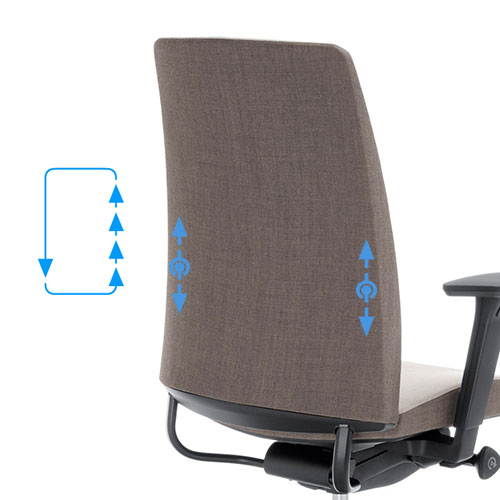

Raising the backrest:
1. Take hold of the backrest with both hands and gently move it up.
2. Release the backrest in the chosen position.
Lowering the backrest:
1. Take hold of the backrest with both hands, raise it up to a maximum height - backrest will fall to the lowest position.
2. Holding the backrest with both hands adjust it to the chosen position.

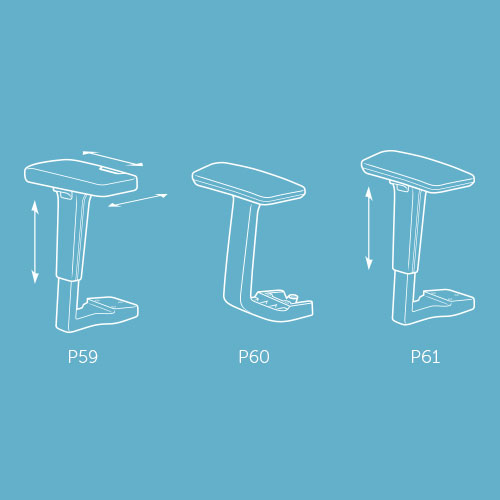

P59PU - Height adjustable armrest (range 80 mm), sliding pad (+/- 50 mm) with span option (+/- 30 mm).
P60PU - Fixed armrest.
P61PU - Height adjustable armrest (range 80 mm).
